제품 상세 정보:
결제 및 배송 조건:
|
| 부품번호: | 38-1-5 | 종류: | 말레 |
|---|---|---|---|
| 보증: | 1년이요 | 핀: | 38개 핀 |
| 색: | 검정색 | 재료: | PBT |
| 타입: | 연결기 | 애플리케이션: | 스텝 모터 게으른 모토를 위해 |
| MOQ: | 100 PC | 배달 시간: | 5-7days |
| 강조하다: | 38 Pin Automotive Electrical Connectors,AMP/TE Automotive Electrical Connectors,Automotive Electrical Connectors For Stepper Motor |
||

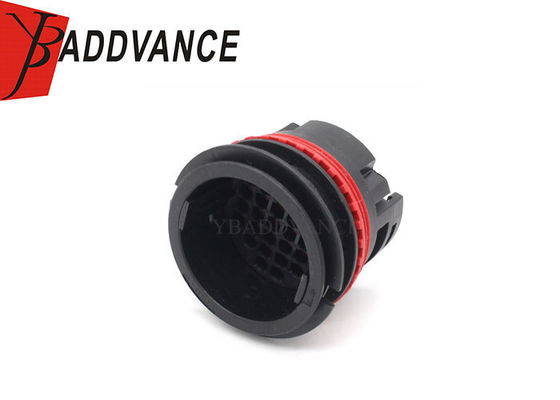

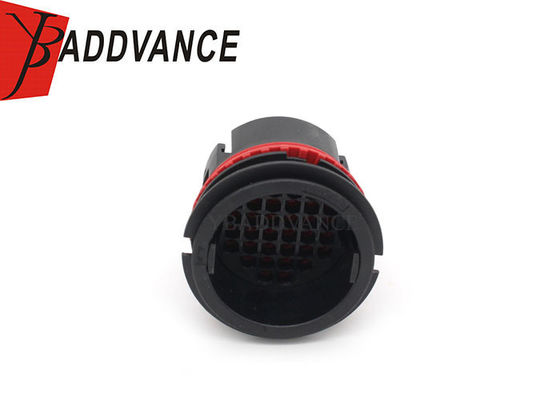

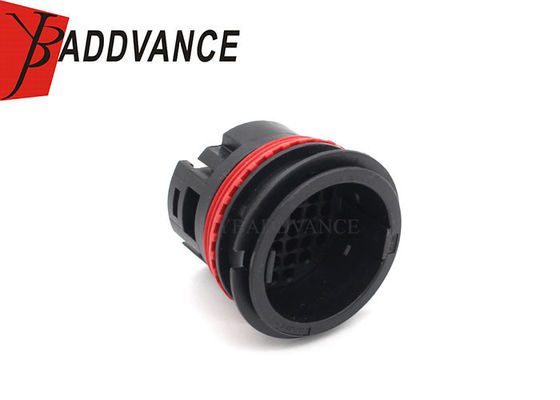

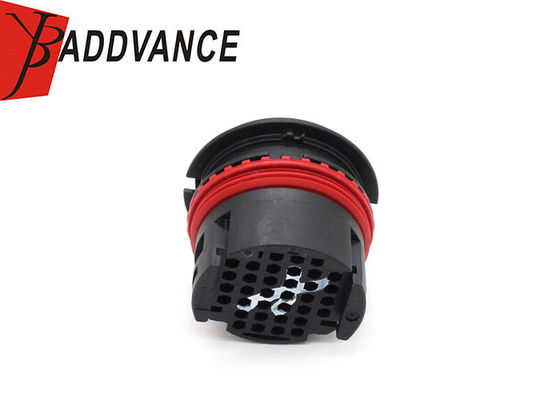

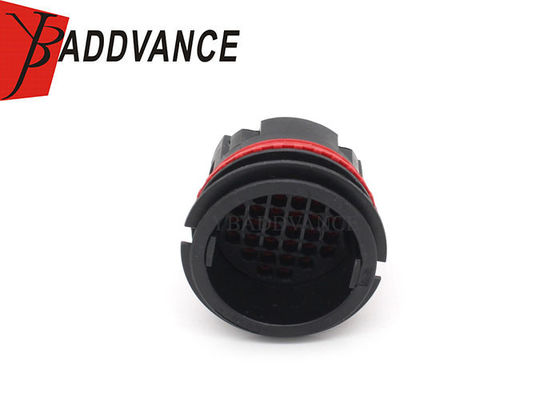

38 Pin AMP/TE Male Automotive Electrical Connectors For Stepper Motor Idle Moto
Description of Product
The following is showed this kinds of connector will come with which parts together.
1 x Male connector housing
38 x Terminals
38 x Seals
Brand Name: YBADDVANCE
Type: ADAPTER
Package: Normal packaging
| Sealed/Unsealed |
Sealed |
| Male/Female | Male |
| Material | PA66 GF |
| Way | 38 way |
|
Width
|
20.83 mm [ .82 in ]
|
| Height | 24.16 mm [ .951 in ] |
| Length |
45.92 mm [ 1.808 in ]
|
| Quality Control | All goods will be 100% inspected before shipment |
| Operating Temperature (Max) | 125 °C [ 257 °F ] |
| Accepts Wire Insulation Diameter Range | 2.23 – 3.68 mm [ .088 – .145 in ] |
| Operating Temperature range | -55 – 125 °C [ -67 – 257 °F ] |
| Including | Housing Socket,terminals,rubber seals |
| Lead Free | Lead Free |
| Main products | Electrical Connectors,wire harnesses and fuel injector repair kits.. |
| Delivery Time | About 3-7 days |
| Shipping express | DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL |
More details about pictures
